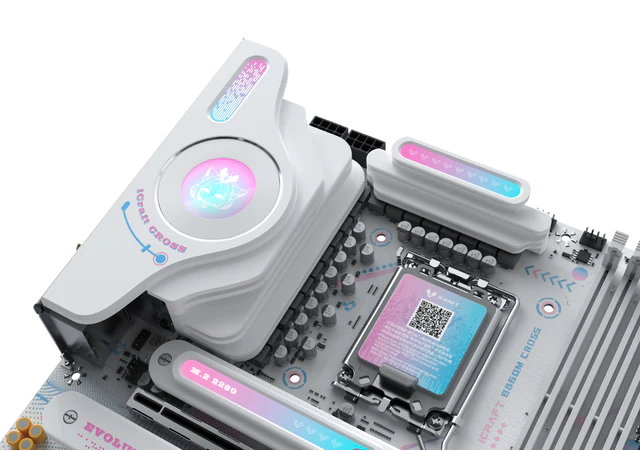

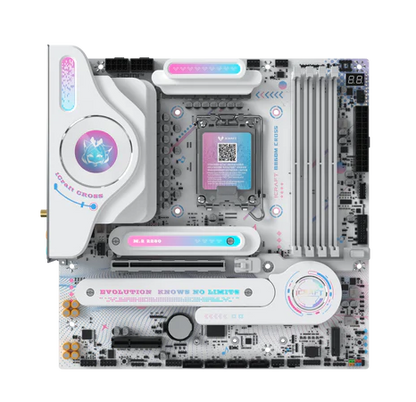

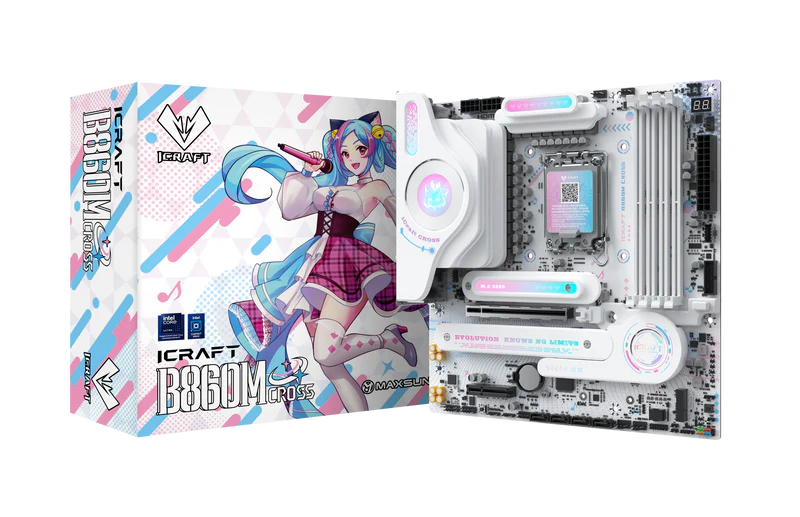

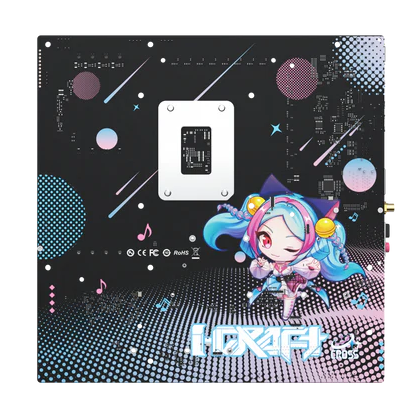

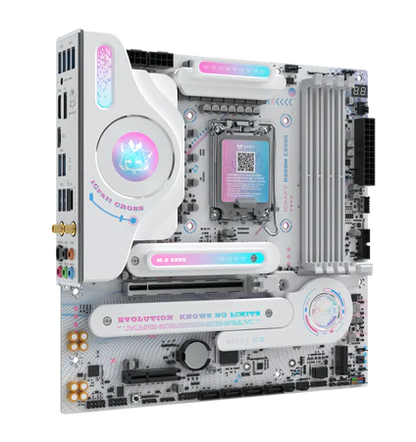

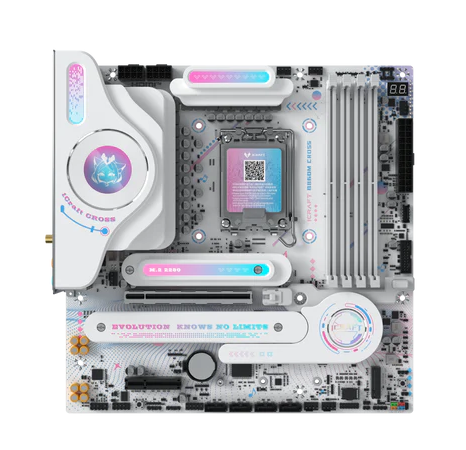

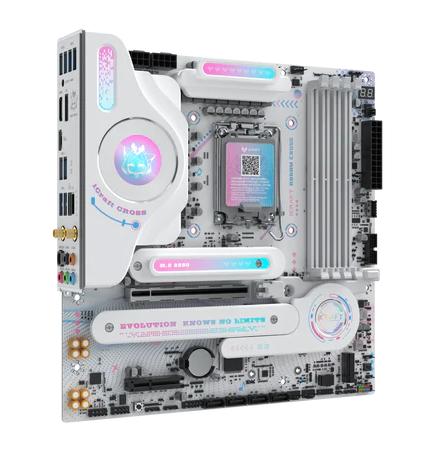

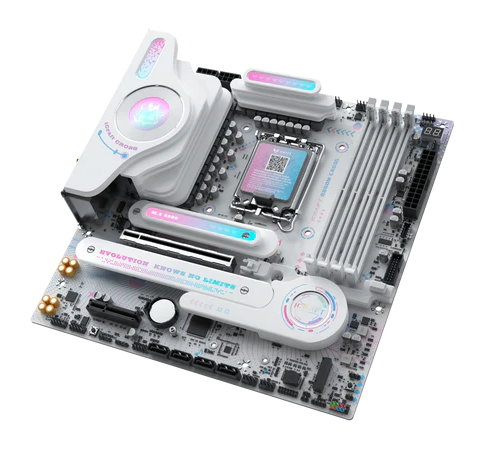

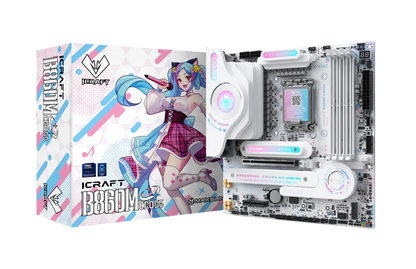

Mainboard MS-iCraft B860M CROSS

General information
Series: MS-iCraft CROSS
Model number: B860M CROSS
Form factor: Micro-ATX
Chipset: Intel B860
CPU socket: LGA1700
Supported processors: Intel Core 12th/13th/14th Gen
Supported memory: DDR5-7200 (OC) / DDR5-5600 (Standard)
Memory channels: Dual Channel
Maximum storage capacity: 128 GB
PCI Express: PCIe 5.0 x16 + PCIe 3.0 x1
Storage ports: 4x SATA III, 2x M.2 (PCIe Gen4 x4)
Power supply: 12+1+1 phase digital power design
Audio chip: Realtek ALC897
Network: 2.5G LAN (Intel I226-V)
Operating system: Windows 10 / 11 compatible

Integrated peripherals/components
Graphics support: HDMI 2.1, DisplayPort 1.4 (depending on CPU)
USB ports: 1x USB-C 3.2 Gen2, 2x USB 3.2 Gen1, 6x USB 2.0
Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 3.0 x1

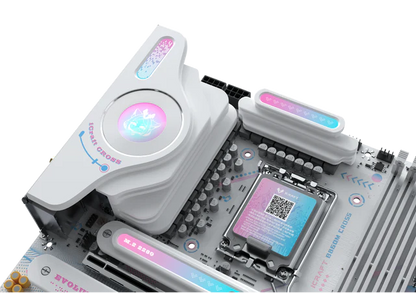

Cooling: Large-area VRM heatsinks, M.2 Armor cooling
RGB support: ARGB & RGB header (compatible with MS-iCraft RGB Sync)
Features: DDR5, PCIe 5.0, 2.5G LAN, M.2 Gen4, stable power setup for gaming and workloads
Condition: Available (Retail)
Warranty: 2 years
