Mainboard E-sports B650ITX WIFI ICE

General information
AMD E-sports ICE series
Model number B650ITX WIFI ICE
Mini-ITX form factor
Chipset AMD B650
CPU socket AM5
Supported processors AMD Ryzen 7000 series
Supported memory DDR5-7200 (OC) / DDR5-5600 (Standard)
Memory channels Dual Channel
Maximum storage capacity 64 GB
PCI Express PCIe 4.0 x16
Storage ports 2x SATA III, 2x M.2 (PCIe Gen4 x4)
Power supply 10+2+1 phase power design
Audio chip Realtek ALC897
Network 2.5G LAN (Realtek RTL8125B)
Operating system Windows 10 / 11 compatible

Integrated peripherals/components
Graphics support HDMI 2.1, DisplayPort 1.4 (depending on CPU)

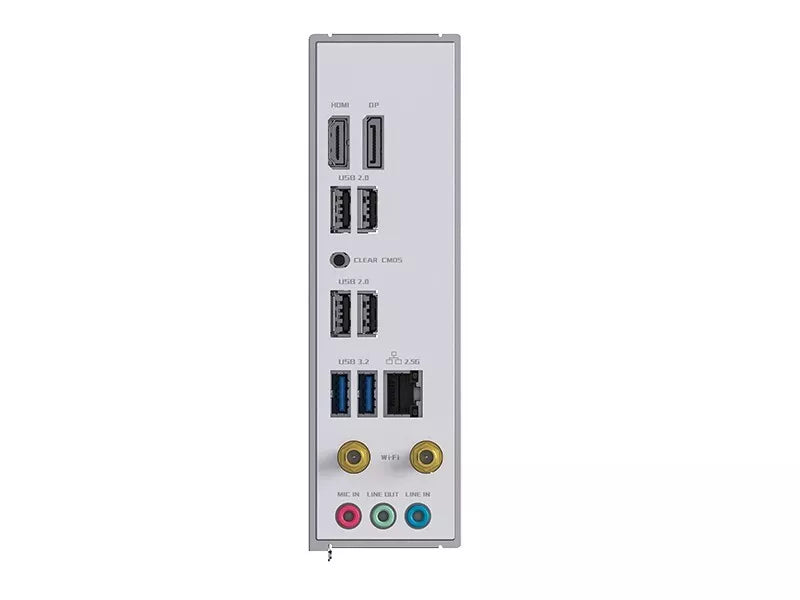

USB ports 1x USB-C 3.2 Gen2, 2x USB 3.2 Gen1, 4x USB 2.0
WLAN/Bluetooth Wi-Fi 6 / Bluetooth 5.2 (integrated)
Expansion slots 1x PCIe 4.0 x16
Cooling White ICE cooling design with aluminum heatsinks and M.2 Armor
RGB support ARGB & RGB header (compatible with common sync systems)
Features DDR5, PCIe 4.0, Wi-Fi 6, 2.5G LAN, e-sports-oriented Mini-ITX layout
Condition Available (Retail)
2-year warranty
