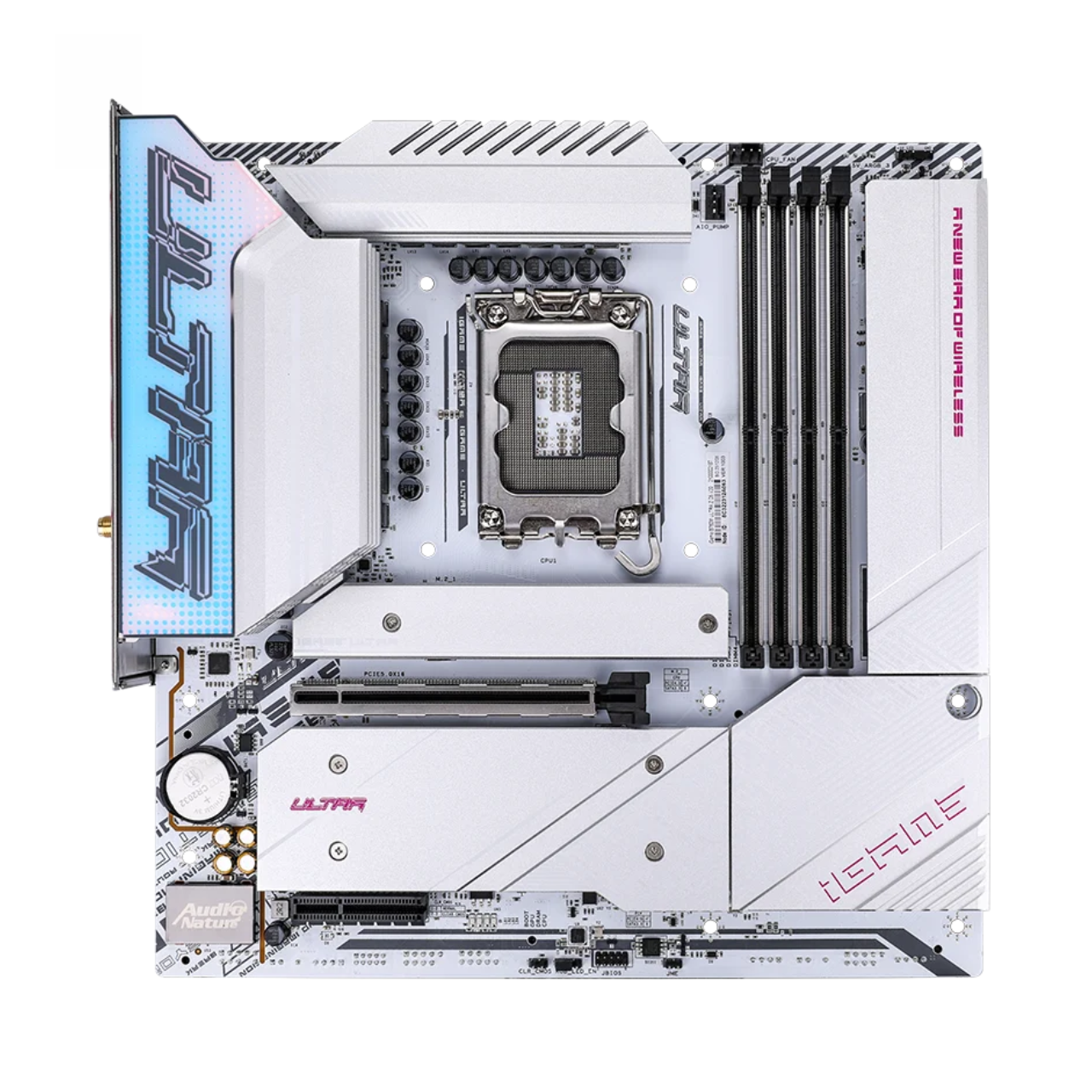

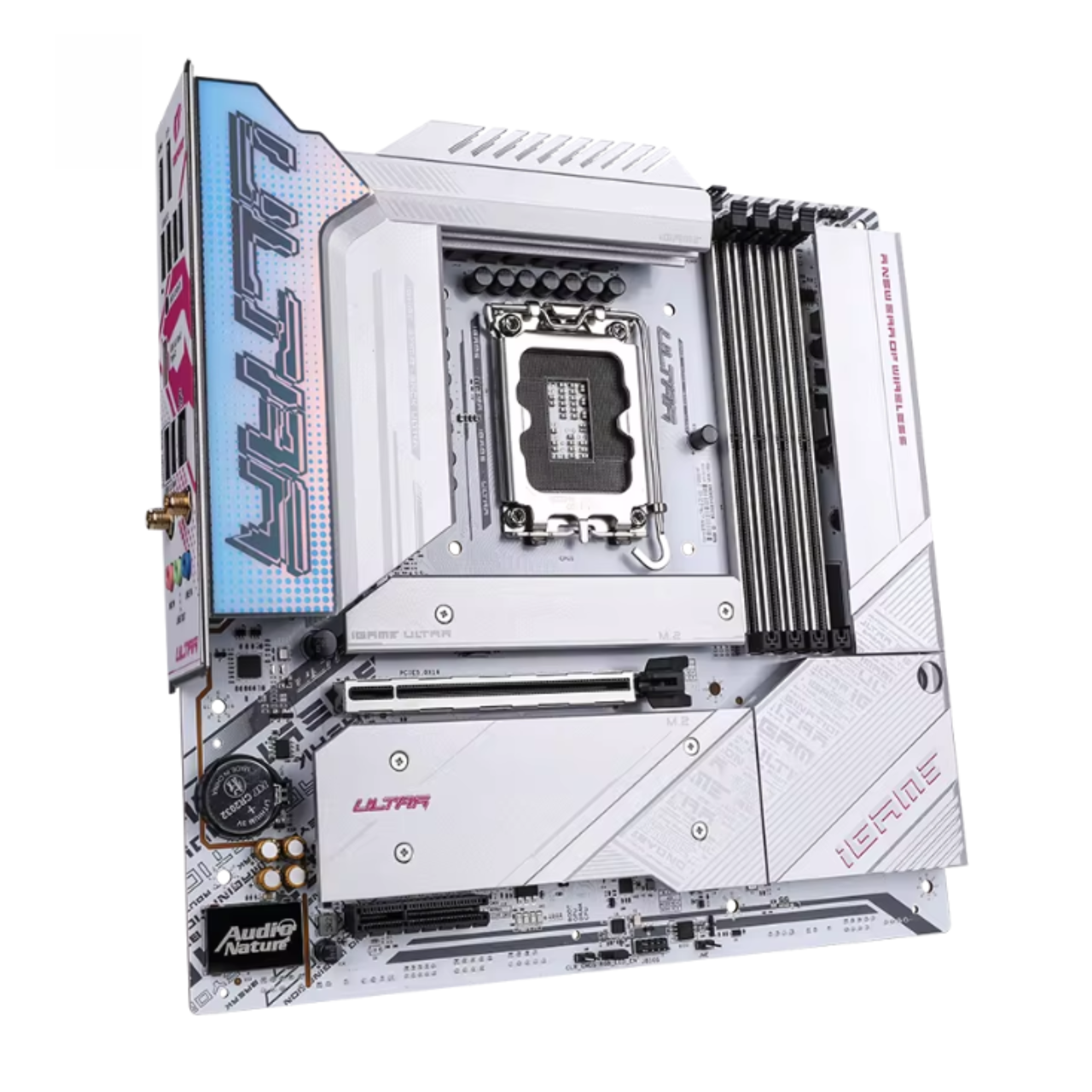

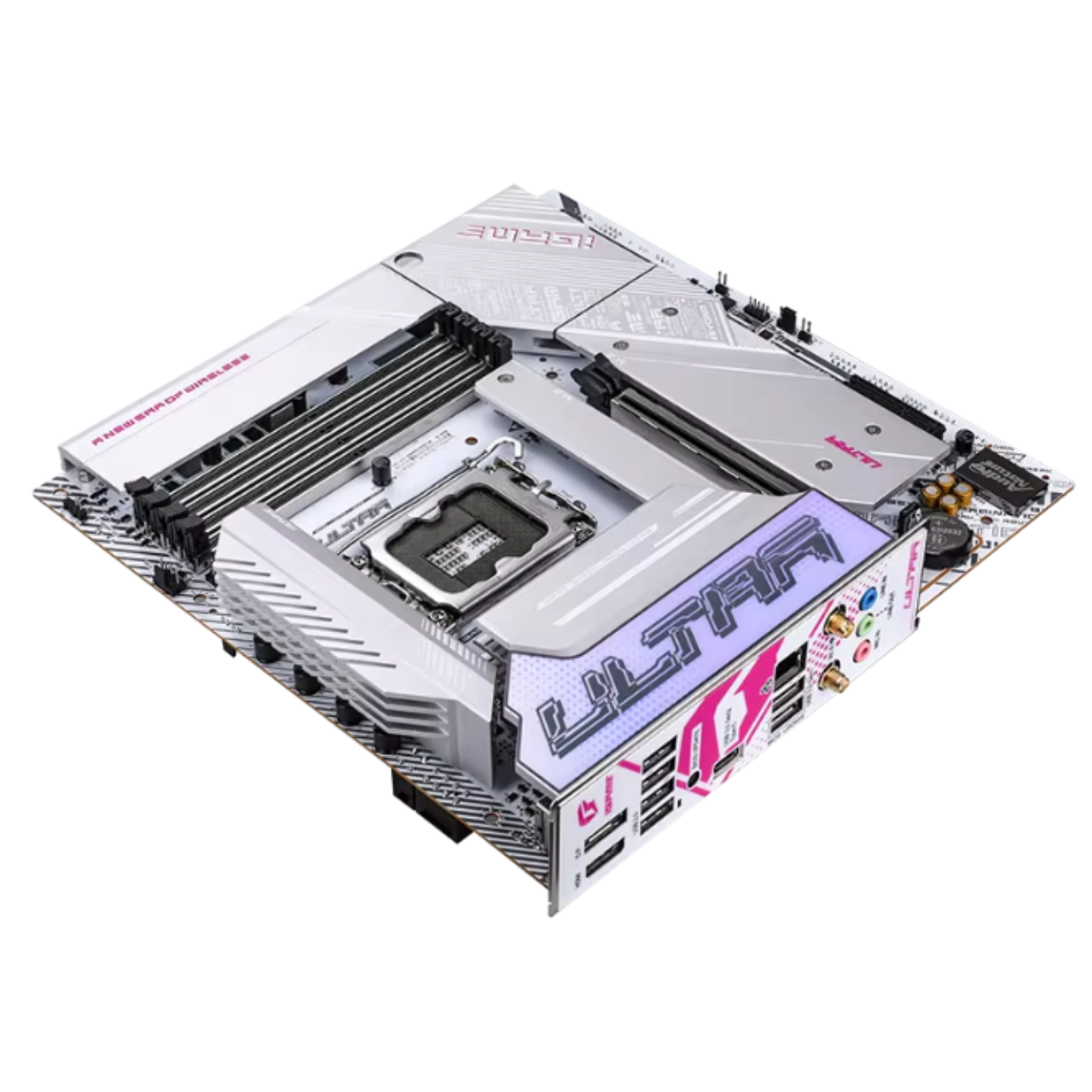

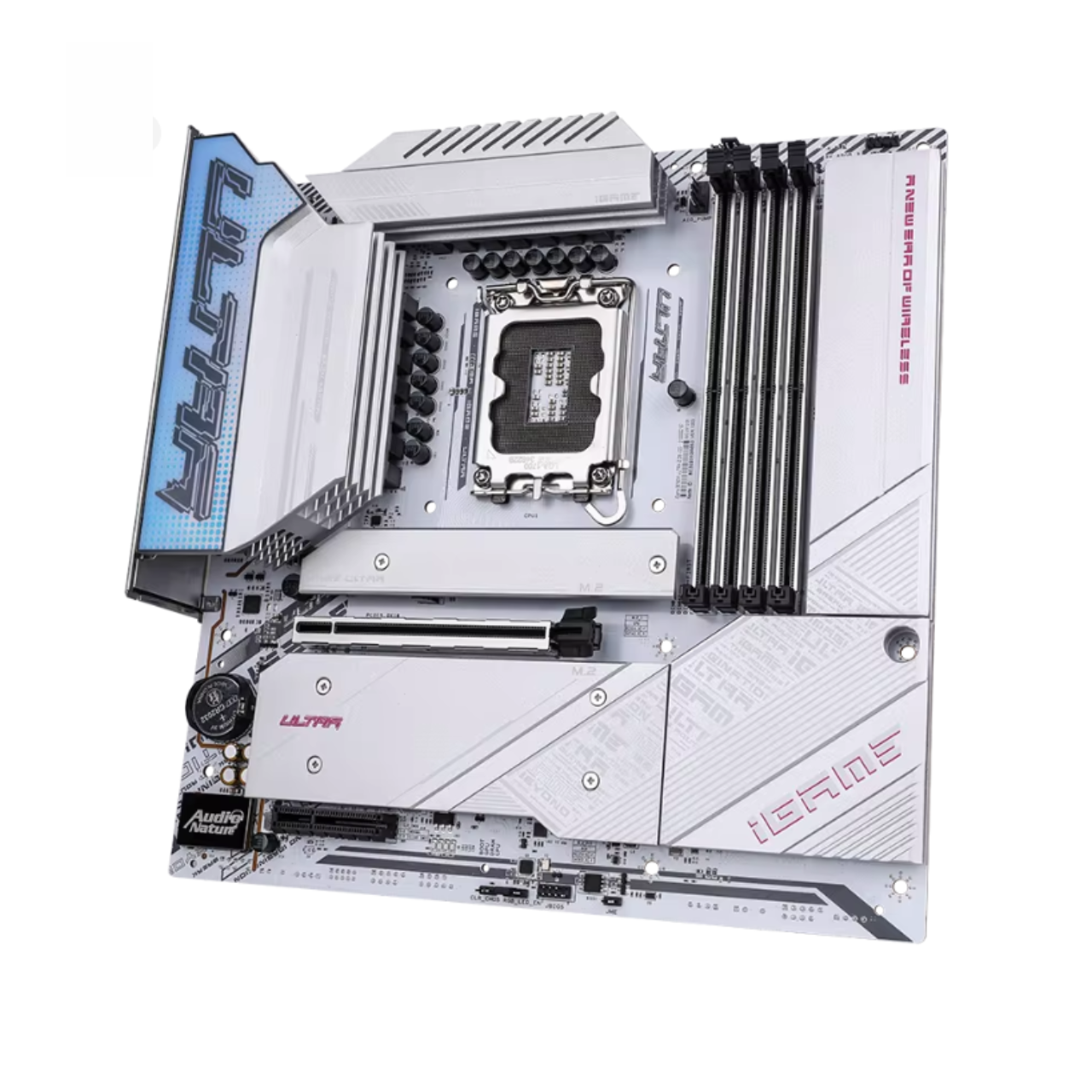

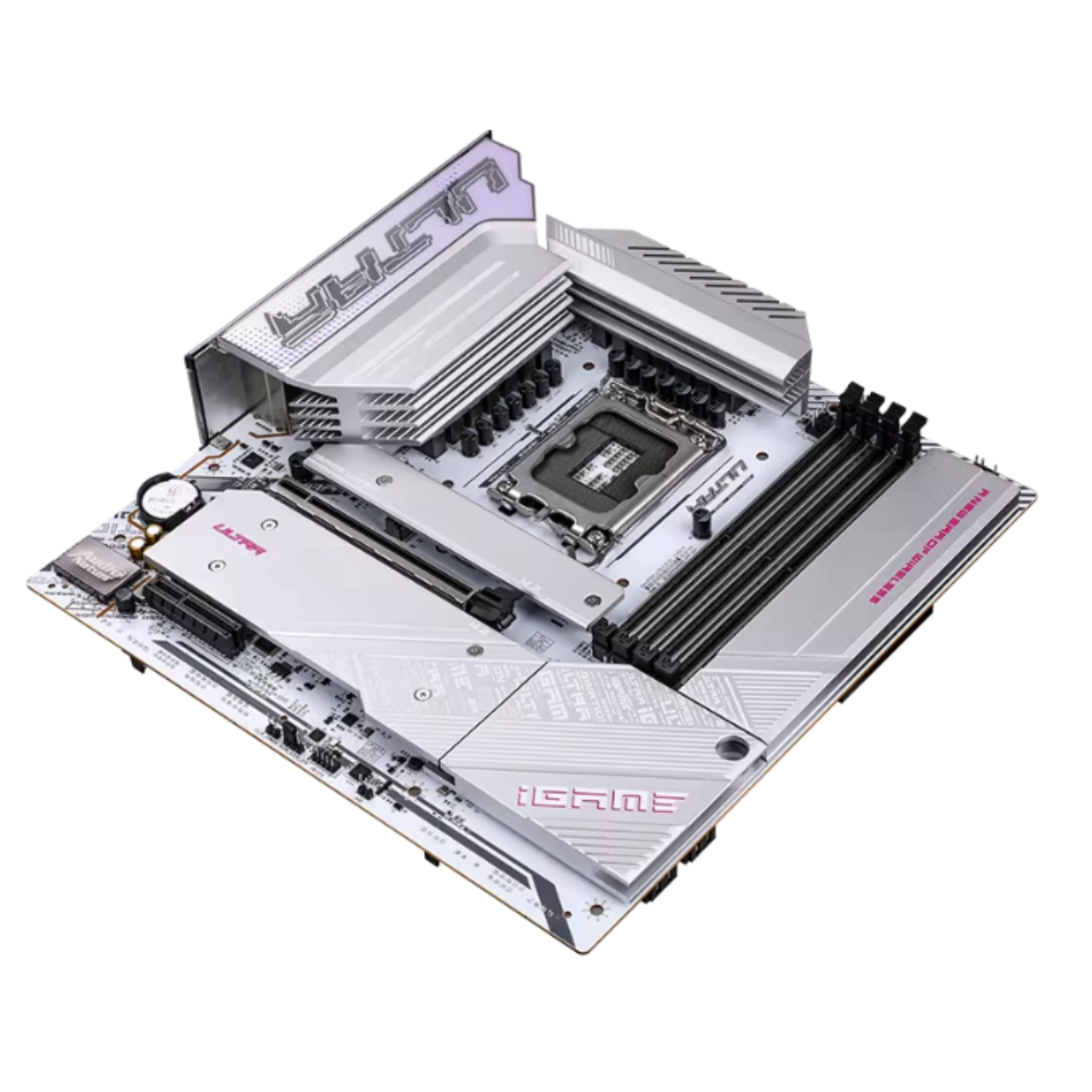

Motherboard B760M ULTRA Z D5 V20 motherboard

General information
Series: iGame ULTRA
Model number: B760M ULTRA Z D5 V20
Form factor: Micro-ATX
Chipset: Intel B760
CPU socket: LGA1700
Supported processors: Intel Core 12th/13th/14th Gen
Supported memory: DDR5-7200 (OC) / DDR5 standard up to 5600 MHz
Memory channels: Dual Channel
Maximum storage capacity: 128 GB
PCI Express: PCIe 5.0 (x16) + PCIe 4.0 (x1)
Storage ports: 4x SATA III, 3x M.2 (PCIe Gen4 x4)
Power supply: 12+1+1 phase digital power design
Audio chip: Realtek ALC897
Network: 2.5G LAN (Intel I225-V)
Operating system: Windows 10 / 11 compatible

Integrated peripherals/components
Graphics support: HDMI 2.1, DisplayPort 1.4 (depending on CPU)

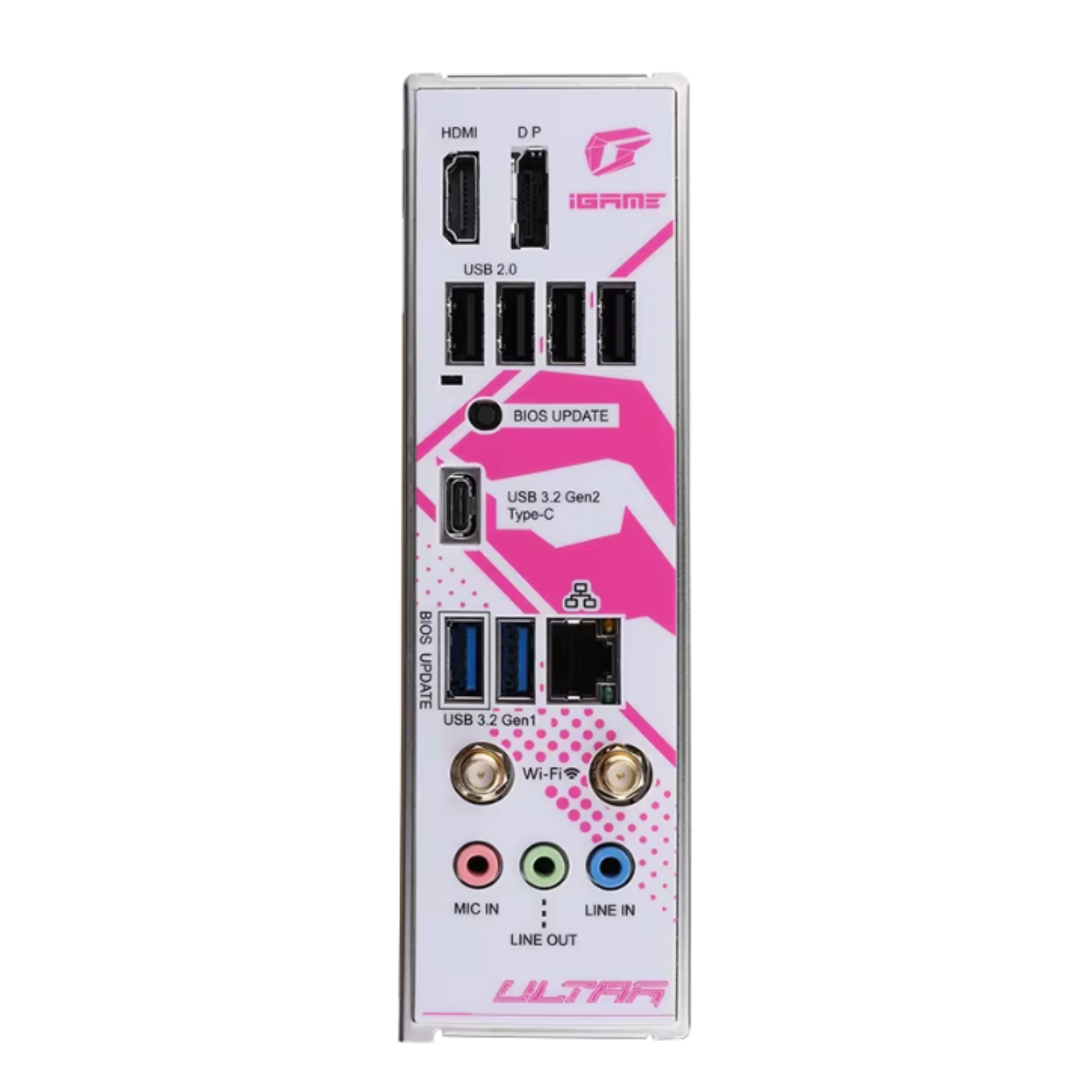

USB ports: 1x USB-C 3.2 Gen2, 2x USB 3.2 Gen1, 6x USB 2.0
Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x1
Cooling: Massive VRM heatsink, M.2 Armor Heatsinks
RGB support: ARGB & RGB header (compatible with iGame Center)
Features: PCIe 5.0, DDR5 support, 2.5G LAN, M.2 Gen4, High-quality audio capacitors
Condition: Available (Retail)
Warranty: 2 years
