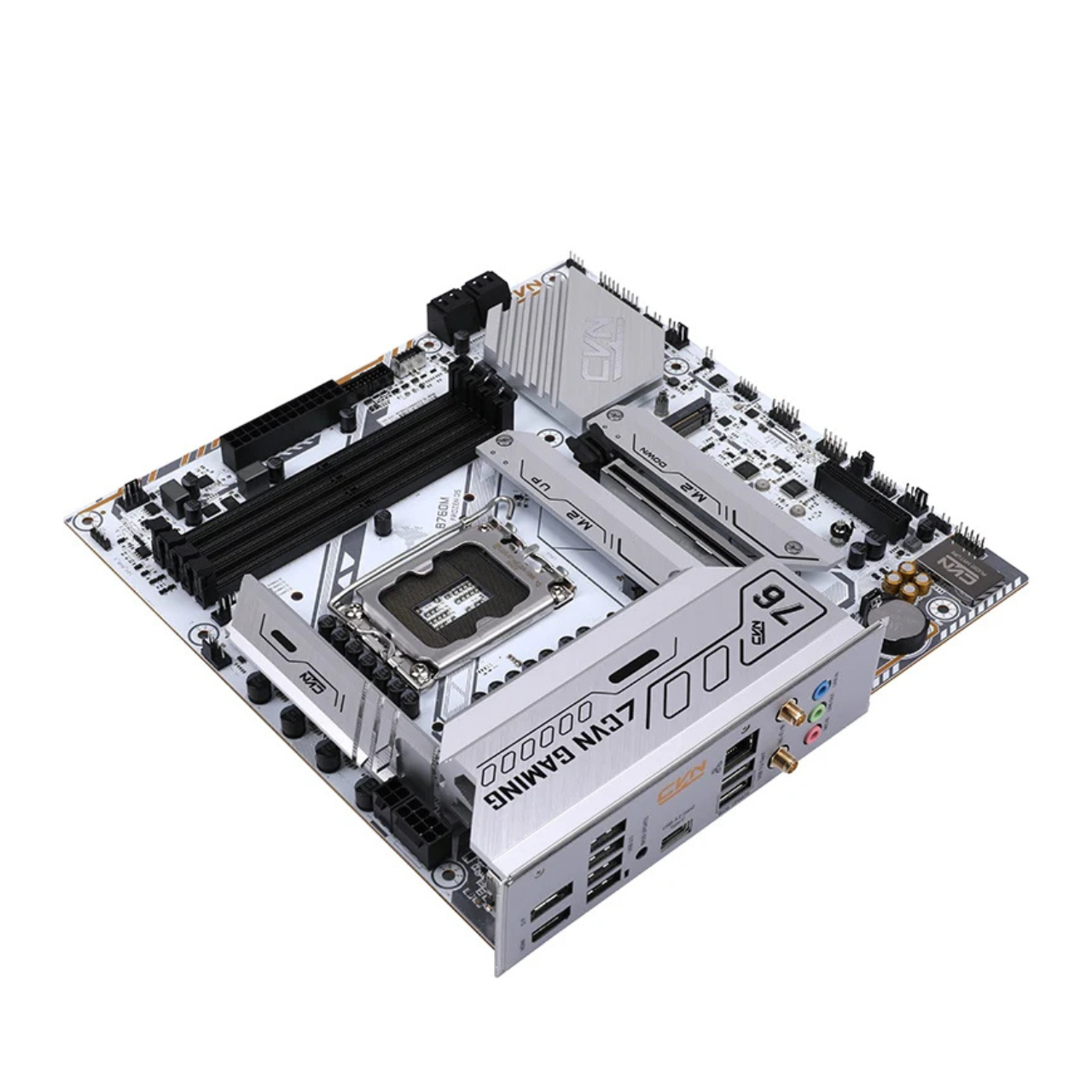

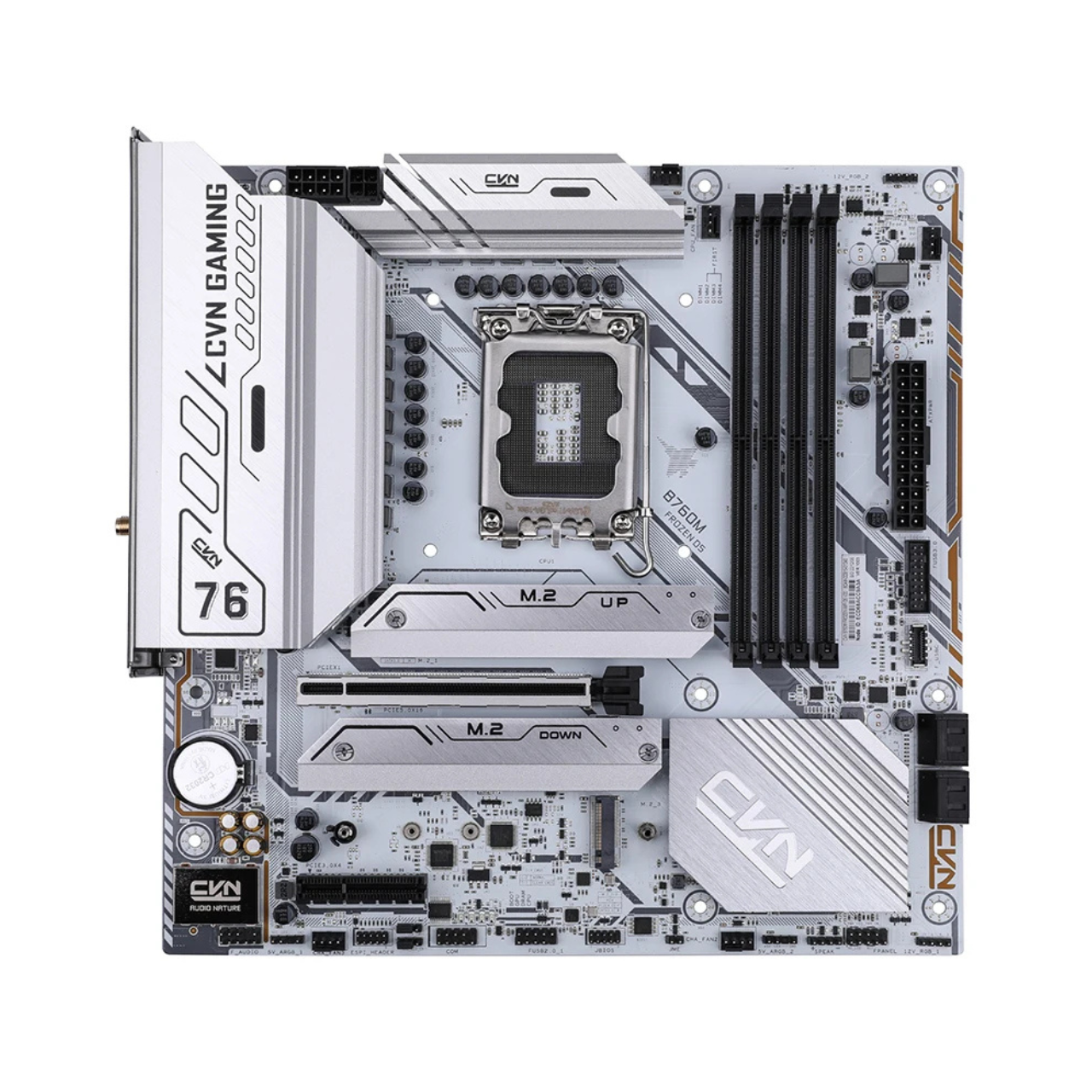

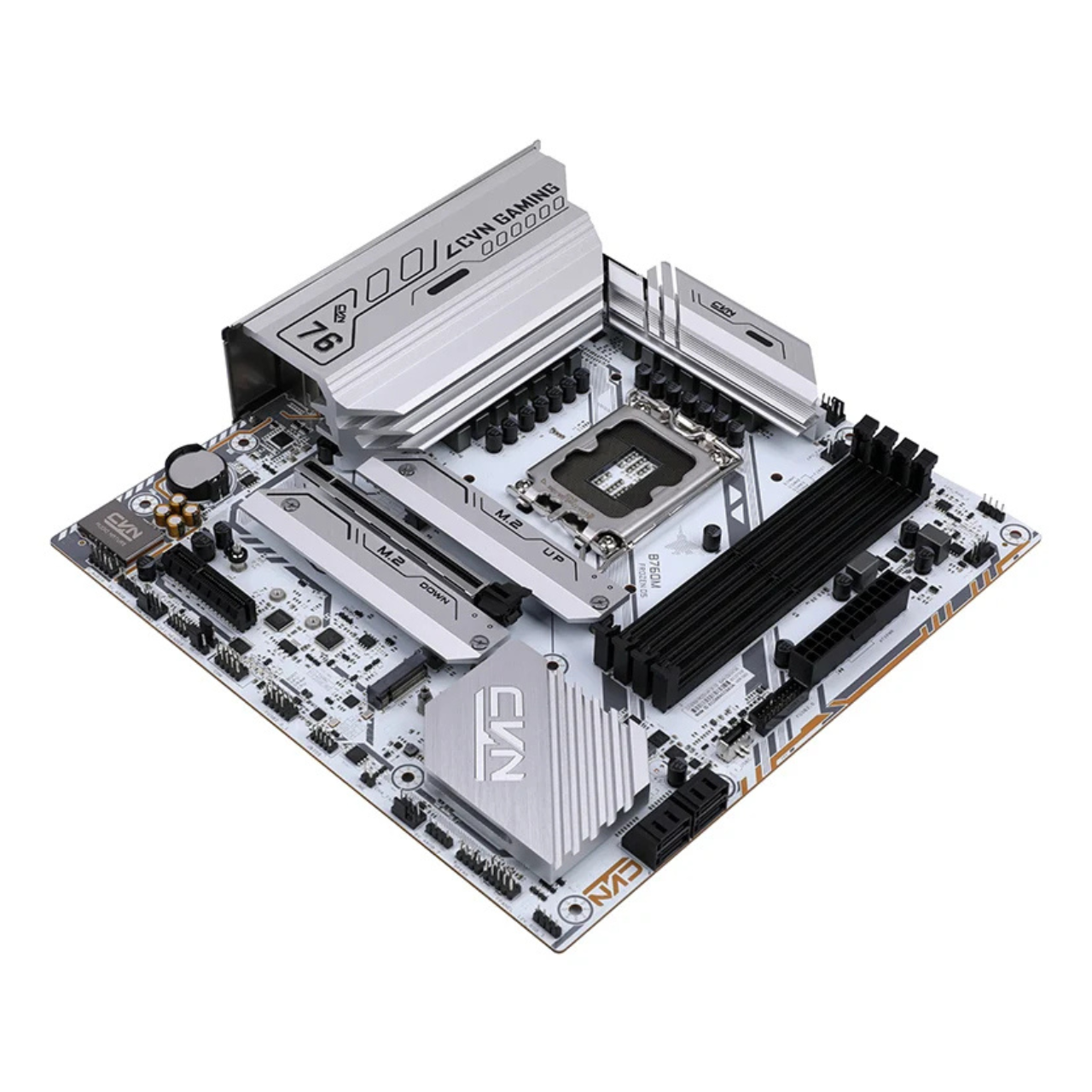

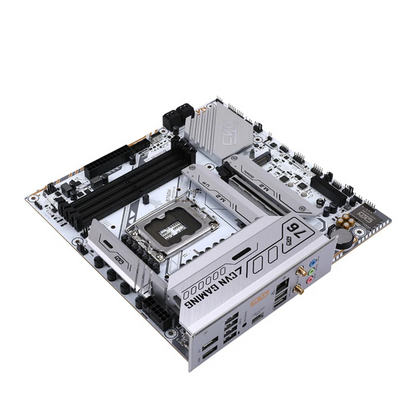

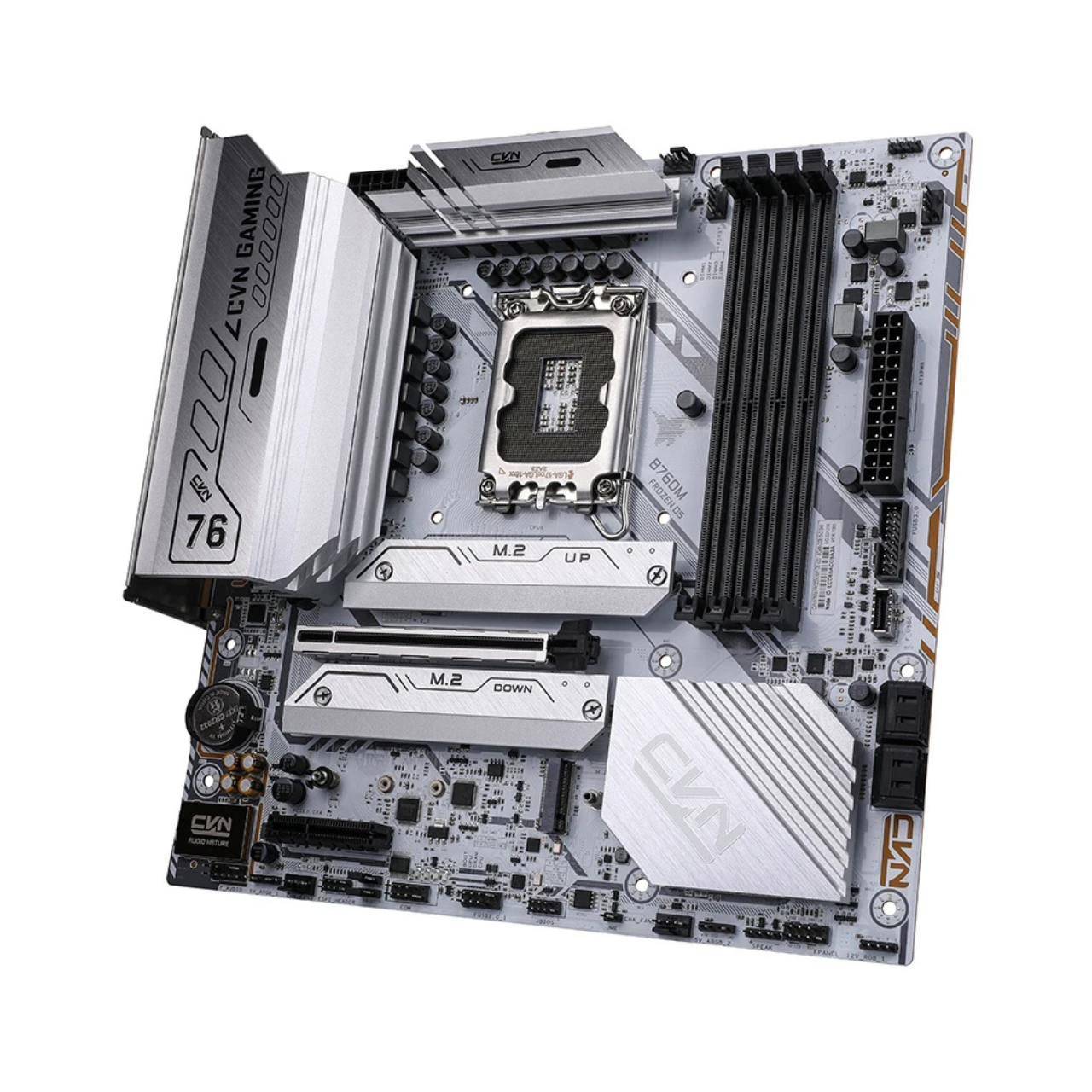

CVN motherboard B760M FROZEN WIFI D5 V20

General information
Series: Colorful CVN FROZEN
Model number: B760M FROZEN WIFI D5 V20
Form factor: Micro-ATX
Chipset: Intel B760
CPU socket: LGA1700
Supported processors: Intel Core 12th/13th/14th Gen
Supported memory: DDR5-7200 (OC) / DDR5 standard up to 5600 MHz
Memory channels: Dual Channel
Maximum storage capacity: 128 GB
PCI Express: PCIe 5.0 (x16) + PCIe 3.0 (x1)
Storage ports: 4x SATA III, 2x M.2 (PCIe Gen4 x4)
Power supply: 12+1 phase power design
Audio chip: Realtek ALC897
Network: 2.5G LAN (Intel I226-V)
Operating system: Windows 10 / 11 compatible

Integrated peripherals/components
Graphics support: HDMI 2.1, DisplayPort 1.4 (depending on CPU)

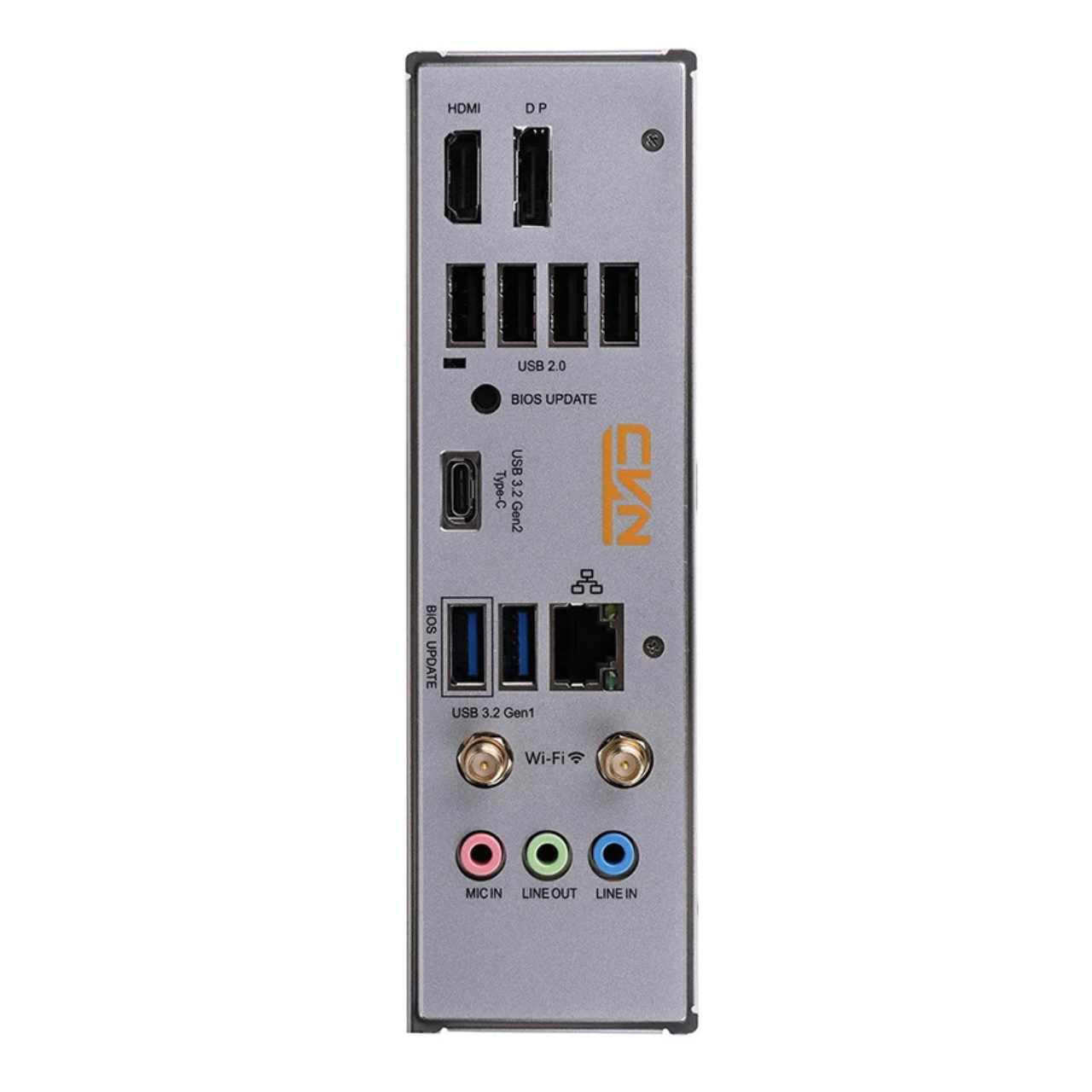

USB ports: 1x USB-C 3.2 Gen2, 2x USB 3.2 Gen1, 6x USB 2.0
WLAN/Bluetooth: Wi-Fi 6 / Bluetooth 5.2 (integrated)
Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 3.0 x1
Cooling: CVN-FROZEN design with silver-white heatsinks, M.2 heatsinks
RGB support: ARGB & RGB header (compatible with iGame Center)
Features: PCIe 5.0, DDR5 support, integrated Wi-Fi 6, 2.5G LAN, M.2 Gen4, stylish frost design
Condition: Available (Retail)
Warranty: 2 years
